EOS-JT-H-IR Series

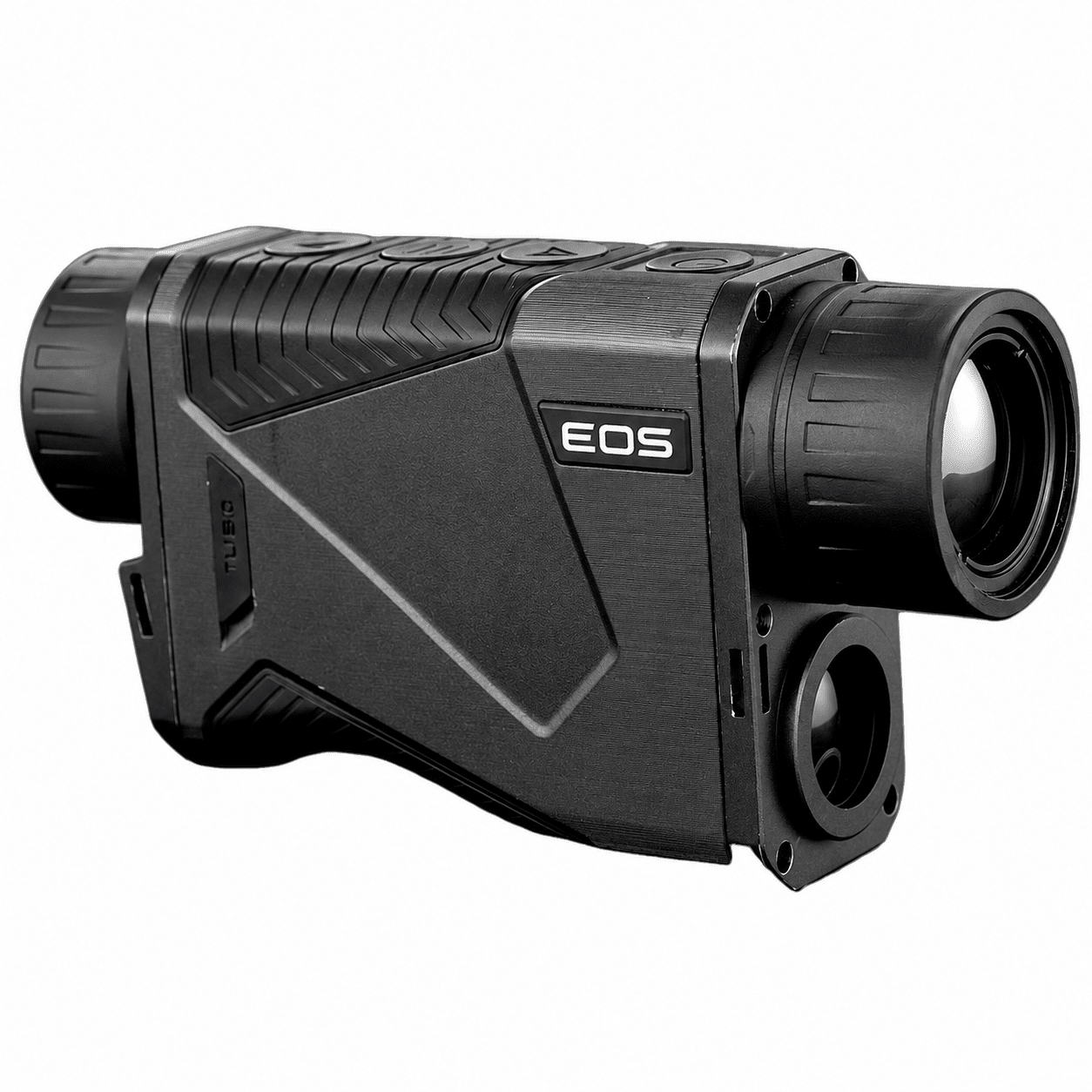

EOS-JT-H-IR Series Thermal Monocular

  • Uncooled VOx sensor: The uncooled VOx sensor ensures reliable, high-quality thermal imaging, even in harsh environmental conditions.
  • IP67 waterproof rating: With an IP67 waterproof rating, the monocular can withstand harsh outdoor conditions, making it suitable for use in damp or dusty environments.
  • 35mm/F1.0 lens: The 35mm/F1.0 lens offers excellent light transmission, enhancing image clarity and detail in low-light conditions.
  • 18650 battery type: The use of a standard 18650 battery ensures easy replacement and long-lasting power, providing up to 5 hours of continuous use.
Datasheet
Monoculaire thermique EOS série JT

EOS-JT-H-IR Series

Technical details

Captor

uncooled

Captor : VOx
Resolution : 384 x 288px / 640 x 512px at 12 µm
Frame rate : 50 Hz

Display

OLED

Digital zoom : 1 at 8x
Resolution : 1024 x 789 px
PiP : support
Recording: video and audio, images and RAV

Resistance

of the device

Protection class : IP67 (waterproof)
Operating temperature : -20°C to 50°C
Battery: lithium 18650
