Autel Robotics EVO II Dual 640T RTK V3

The Autel EVO II Dual 640T RTK V3 is the ideal solution for professionals requiring both thermal data and centimetre-level positioning accuracy. This drone features a high-resolution thermal camera (640×512), a 50 MP visual camera and an RTK module mounted on top of the chassis. It is therefore indispensable for detailed inspections of solar panels and high-voltage power lines, as well as mapping missions where the precise geolocation of heat sources is essential. The V3 series also benefits from improved transmission and the high-end Smart Controller V3.

  • Combines phase detection, contrast detection and object detection for lightning-fast, precise focusing
  • 1 TB of storage – Maximum capacity for professionals working with 6K/8K video or RAW files
  • Waypoint Pro and obstacle detection in all directions
Dayasheet

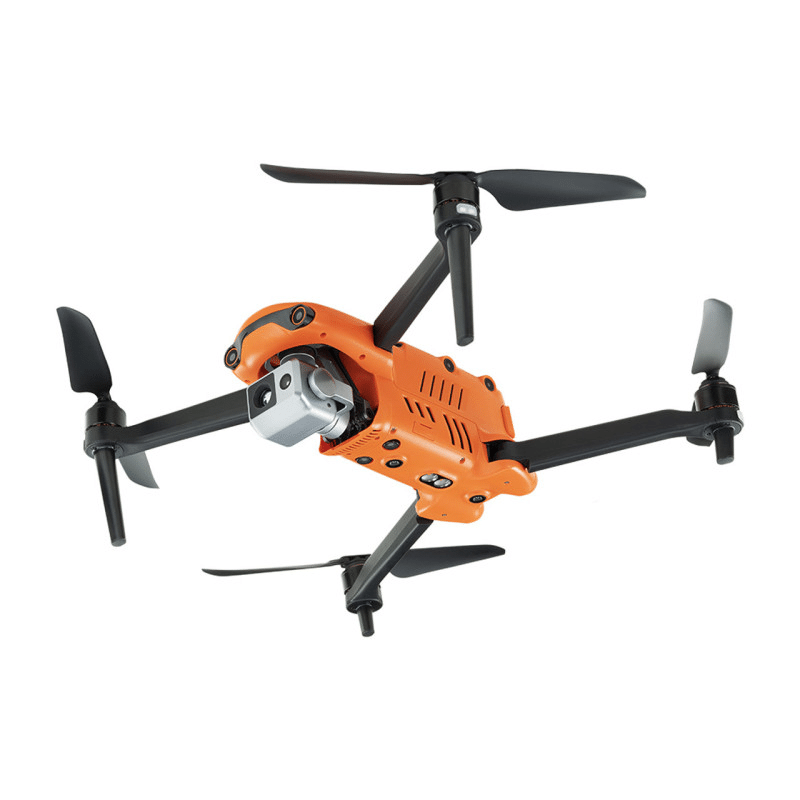

Drone thermique EOS EVO Dual 640T RTK V3 en vol
Drone EOS EVO Dual 640T RTK V3, vue de face avec sa caméra thermique
Drone EOS EVO Dual 640T RTK V3 en vol, vue de trois-quarts
Drone EOS EVO Dual 640T RTK V3 replié pour le transport

EOS_EVO_Dual_640T_RTK_V3

Technical details

Camera

dual-sensor

Radiometric thermal imaging camera: 640×512 @ 30 Hz
Visual sensor: 50 MP 1/1.28″

Temperature

Measurement

Minimum : –20 °C
Maximum : 550 °C
Accuracy : ±3 °C

Safety

advanced

Obstacle avoidance angle: 360°
Sensor groups: 19

Features of the Autel EVO II Dual 640T RTK V3

  • Centimetre-accurate RTK positioning thanks to the integrated RTK module, with real-time data and support for PPK (Post-Processing Kinematic)
  • Reduced need for ground control points (GCPs), significantly speeding up workflows for surveyors and inspectors
  • Simultaneous recording of thermal images and 8K visual video, with Picture-in-Picture mode
  • Autel Skylink 2.0 providing a robust video link up to 15 km (CE), even in highly disrupted environments
  • Autel V3 intelligent controller 7.9” OLED screen
