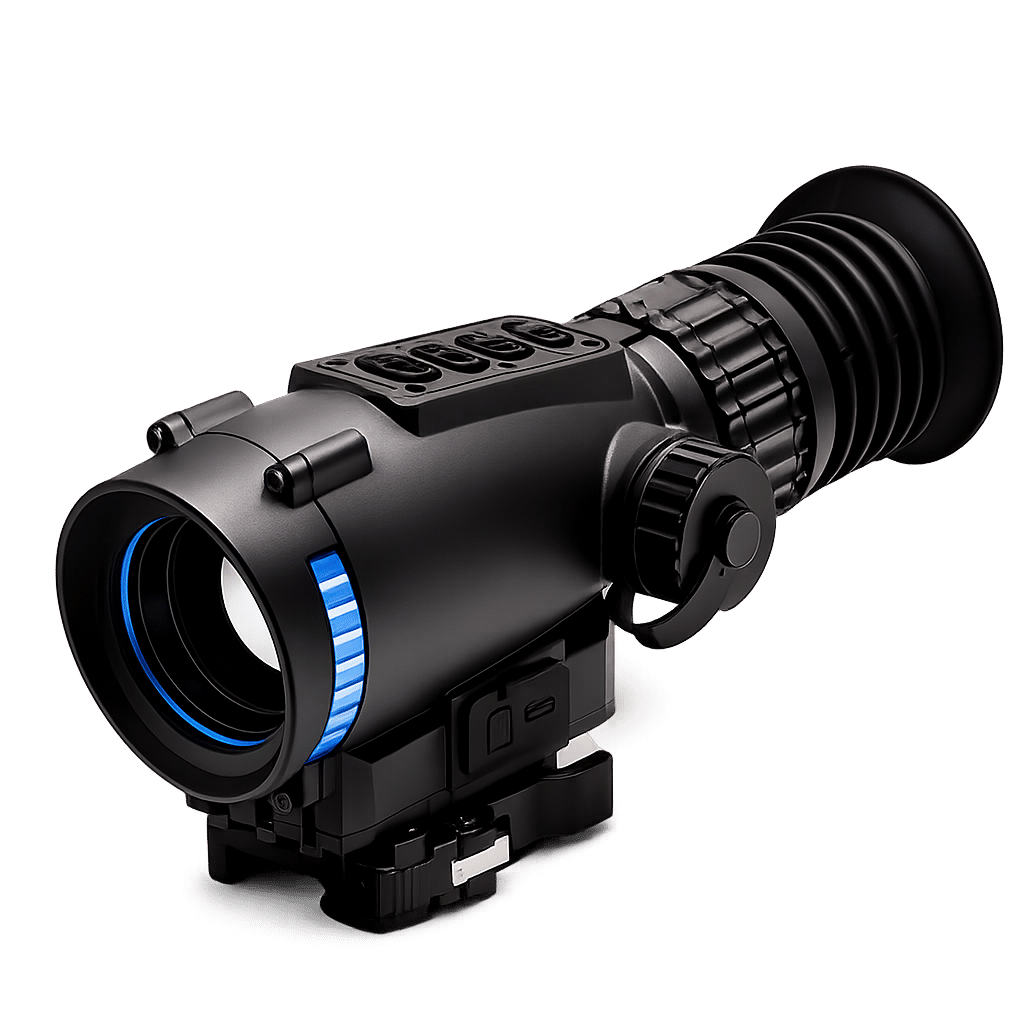

Thermal monocular EOS-GRL325/335

The EOS GRL325 and GRL335 thermal cameras are equipped with a 384 × 288 resolution thermal sensor and advanced 12 μm pixel technology. With high thermal sensitivity (NETD<25mK), they accurately capture subtle temperature differences, providing clear and stable thermal images for observation day and night.

Datasheet
Lunette de tir thermique EOS GRL335 avec télémètre laser

EOS_GRL335

Technical details

Captor

uncooled

Captor: 384*288 @ 12μm
Lens: 25/35 mm
Magnification : 3X / 6X / 9X / 12X

Screen

Frame rate (Hz) : 50
Display : AMOLED HD
Resolution (pixels) : 1024×768

Resitance

Protection class : IPX7 (waterproof)
Battery type : 18650 lithium
Capable of withstanding an impact force of ≤ 1000G

Additional information

Extended thermal detection range

With an extended thermal detection range of up to 1,500 meters, this thermal imaging device enables the identification of heat sources at long distances. The 55 Hz refresh rate ensures a smooth, real-time image display, making it suitable for dynamic outdoor environments and inspections.

Six imaging modes with intelligent thermal optimization

Several imaging modes are available to suit different environments and user preferences. Whether in open areas or complex environments, the adjustable thermal imaging modes enhance visibility and detail in varying conditions.

64 GB built-in storage

The built-in 64 GB internal memory allows for convenient storage of photos and videos without the need for external storage devices, facilitating efficient data capture for outdoor observation and inspection applications.

Easy image alignment and calibration

The device supports intuitive adjustment of the image position and visual alignment calibration. Users can easily fine-tune the display reference to ensure accurate and consistent thermal imaging results during operation.

Reliable quality and long-term support

The EOS thermal imaging device comes with a 5-year warranty. In the event of any quality or performance issues, our professional support team offers rapid and effective assistance to ensure stable and reliable operation.
