EOS-Skylle 2 waterproof design – Firefighting/Transport drone

One-piece carbon fibre body: Ensures high strength and light weight, making the drone durable and easy to carry.

80 minutes’ flight time without payload: Provides extended flight time for longer missions without a payload.

IP54 waterproof rating: Protects the drone from light rain, ensuring it can operate in a variety of weather conditions.

20 km mapping range: Enables long-range operations, suitable for surveying and inspecting large areas.

The Skylle2 utilises an aerospace-grade carbon fibre monocoque moulding process, enabling it to withstand harsh operating environments; rapid

Design featuring detachable arms and landing gear, offering rapid deployment and enhanced portability; integrated modular main avionics, multiple modular interfaces, compatible with a variety of peripheral interfaces, capable of being fitted with auxiliary flight devices such as 4G/5G, RTK, dual-channel mapping, on-board computer, etc., and supporting the subsequent addition of upgraded accessories to enable seamless iterative upgrades; multi-mount interface, compatible with our standardised payload, to meet most industrial application requirements; dual-redundant smart battery design, providing a safer flight experience.

Datasheet

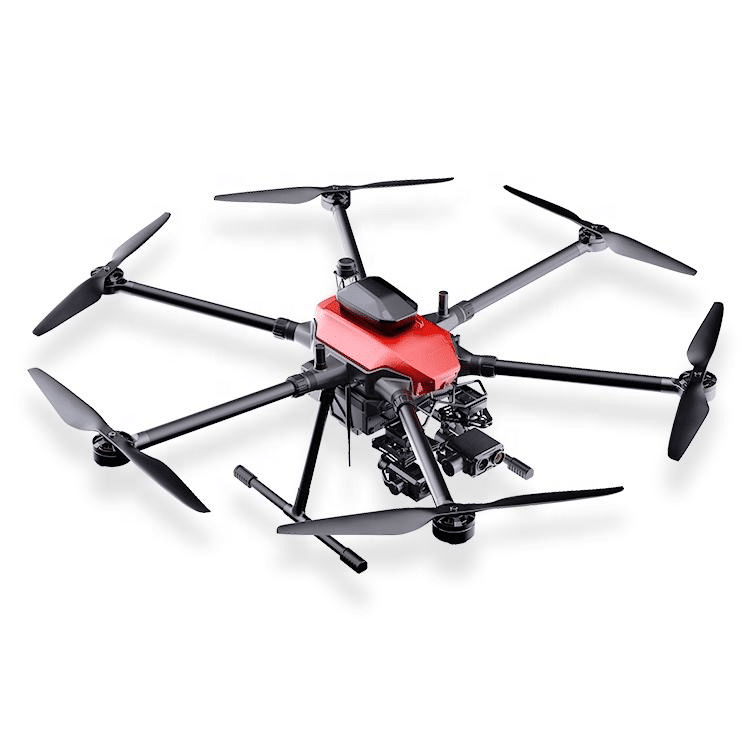

Drone hexacoptère EOS Skylle avec nacelle caméra

EOS_Skylle_2

Technical details

Performance

of the drone

Max. payload: 10kg
Endurance: 80 to 36 min depending on the load
Frame rate: 2.4 GHz
Encryption Method: AES256
Mapping distance: 20km

Speed

of flight

Cruising speed: 0~15m/s
Max. flight: 18m/s
Ascent: 3m/s (default) / 5m/s (max)
Descent: 2m/s (default) / 3m/s (max)

Resitance

of the drone

Operating temperature: -20°C~60°C
Operating humidity: 10% ~ 90% non-condensing
Maximum wind resistance: 12 m/s (Class 6)

Advantages

carbon fibre shell is used to ensure high strength whilst remaining lightweight, and is resistant to light rain and other elements.

Features

  • Plug-in arm design for quick disassembly and assembly whilst reducing packaging size.
  • Ground stations enable one-click route planning for autonomous missions and support guided flights from the ground station.
  • Featuring high-density lithium batteries with a high-efficiency power system, flight time on a single charge can exceed one hour…
  • Multi-gimbal platform: up to five gimbals can be fitted simultaneously to meet the needs of a wider range of scenarios.
