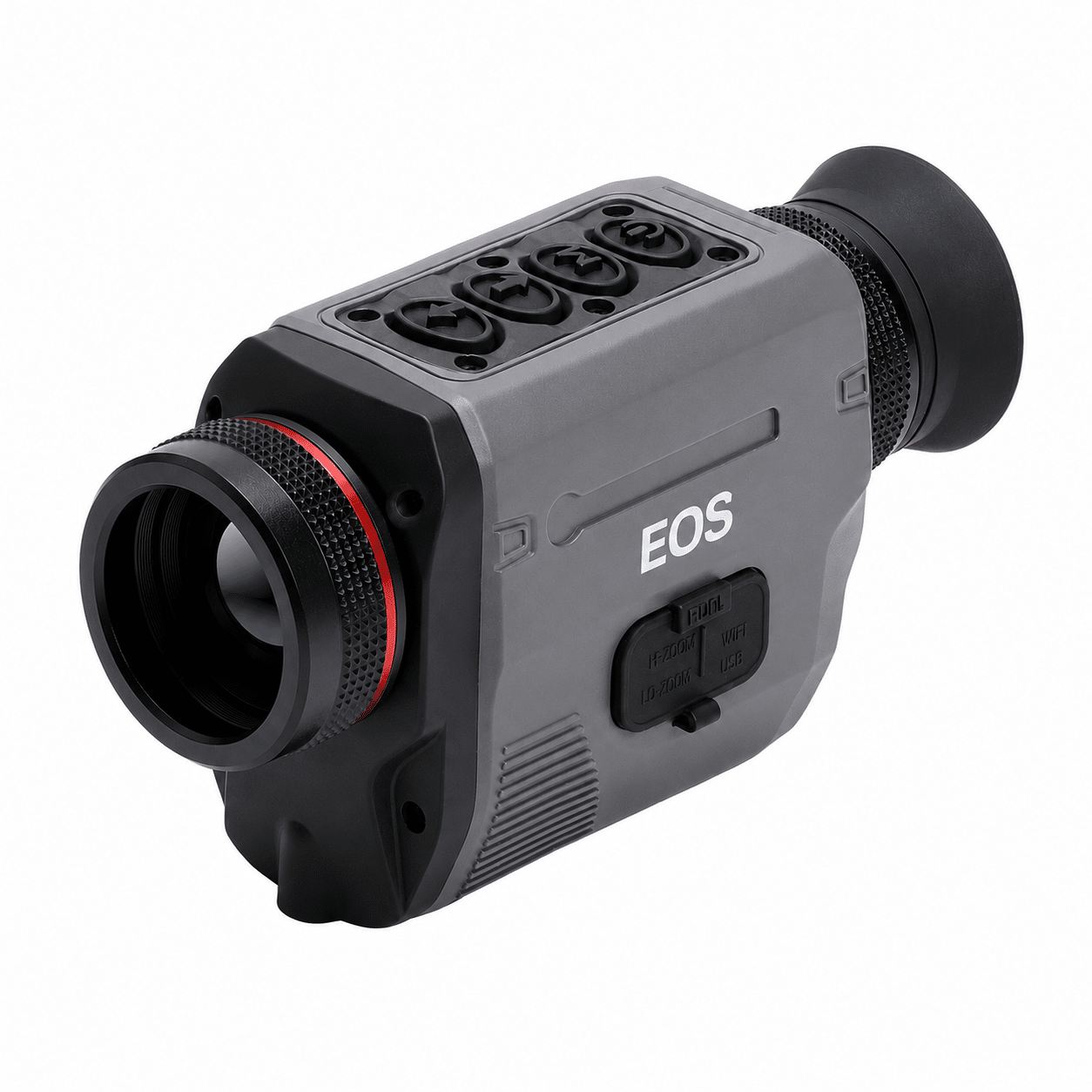

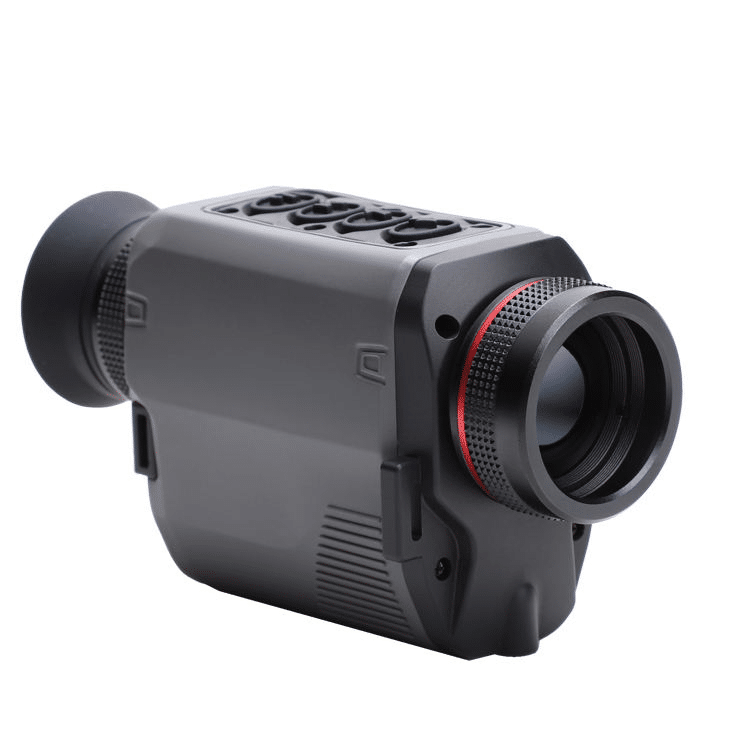

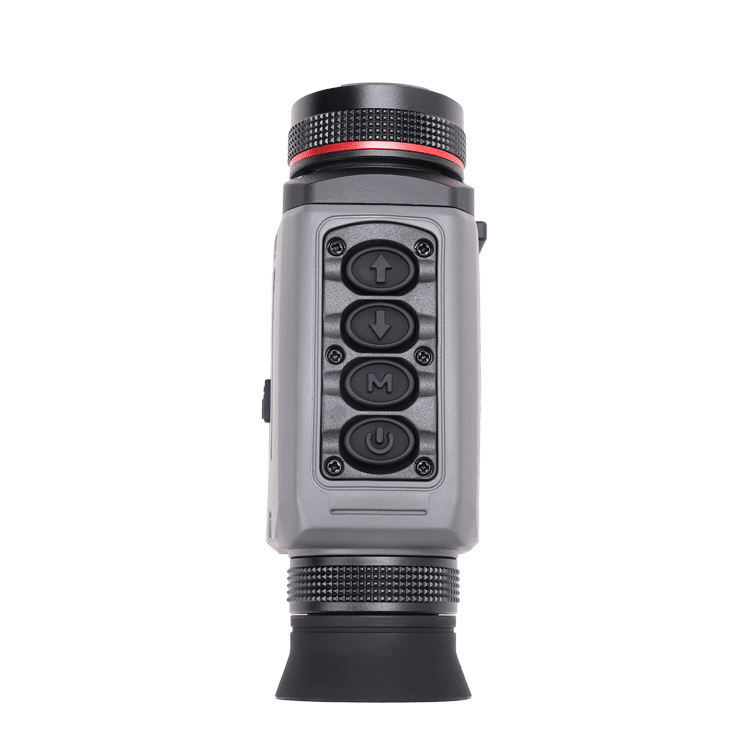

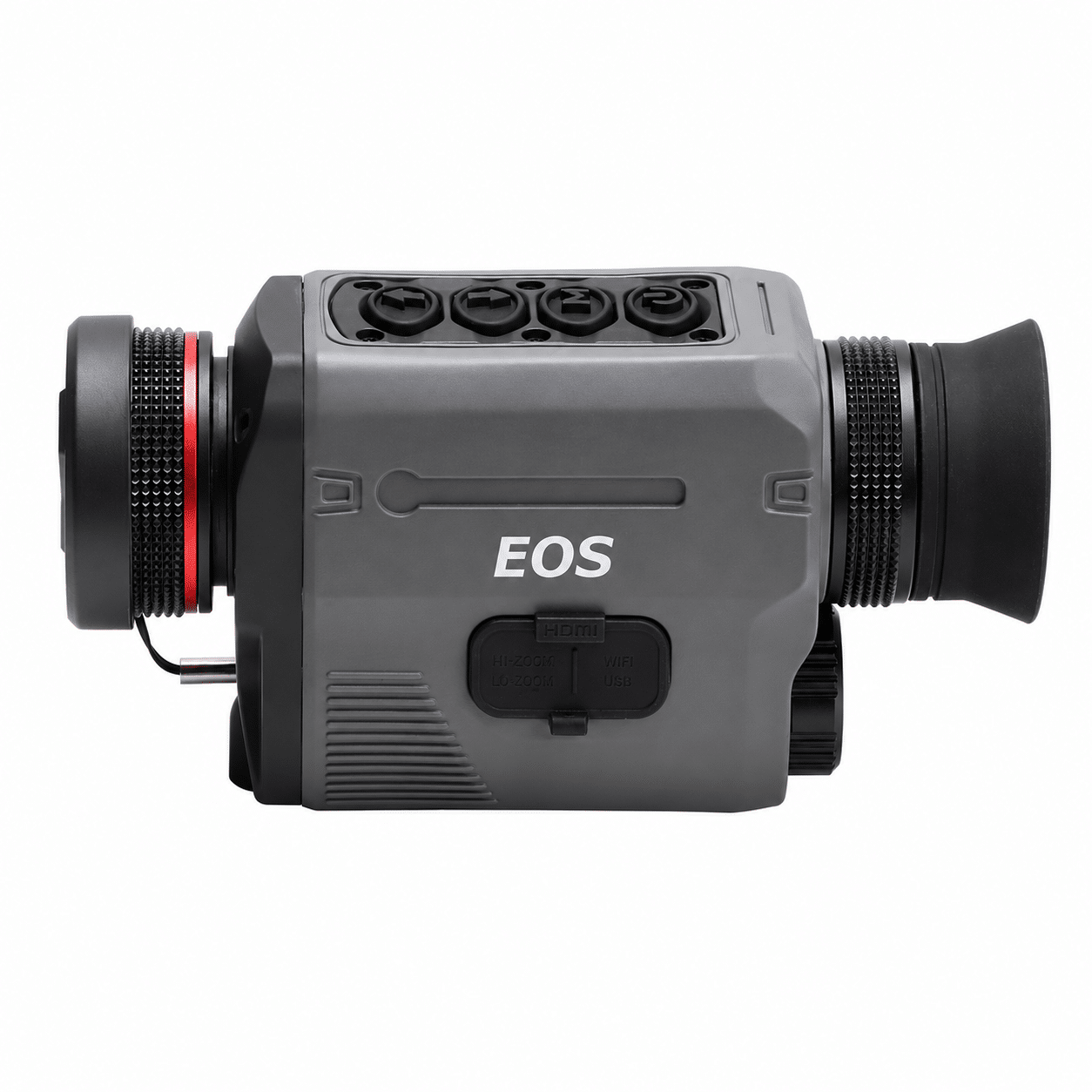

EOS-TG30 Thermal Monocular

The brand new TG30 thermal monocular models. As a top-of-the-range thermal monocular, the TG30 has all the necessary qualities.

The detailed and precise outdoor observation capabilities that hunters demand.
Contient : boussole / Picture-in-Picture / multilingue / Wifi etc.
Audio tracking functions using the microphone and heat source tracking whilst you’re out in the field.
Can be connected to the mobile network for real-time image transmission. The portable design caters to users’ different needs.
High-resolution 384×288 pixel sensors with a 1024×768 OLED display. Combined with an optimised image algorithm, it produces images of exceptional clarity.
For a better viewing experience, the TG30 thermal monocular supports six thermal imaging modes. Users can switch between thermal imaging modes depending on different environments and their personal viewing preferences.

Datasheet

EOS_TG30

Technical details

Captor

VOx

Captor: 384 × 288 @ 12 μm
Lens : 30 mm
Magnification : 2 to 10x

Display

AMOLED HD

Frame range : 50 Hz
Pixels : 1024 × 768

Resistance

bolometer (thermal camera)

Protection class : PIX7 (waterproof)

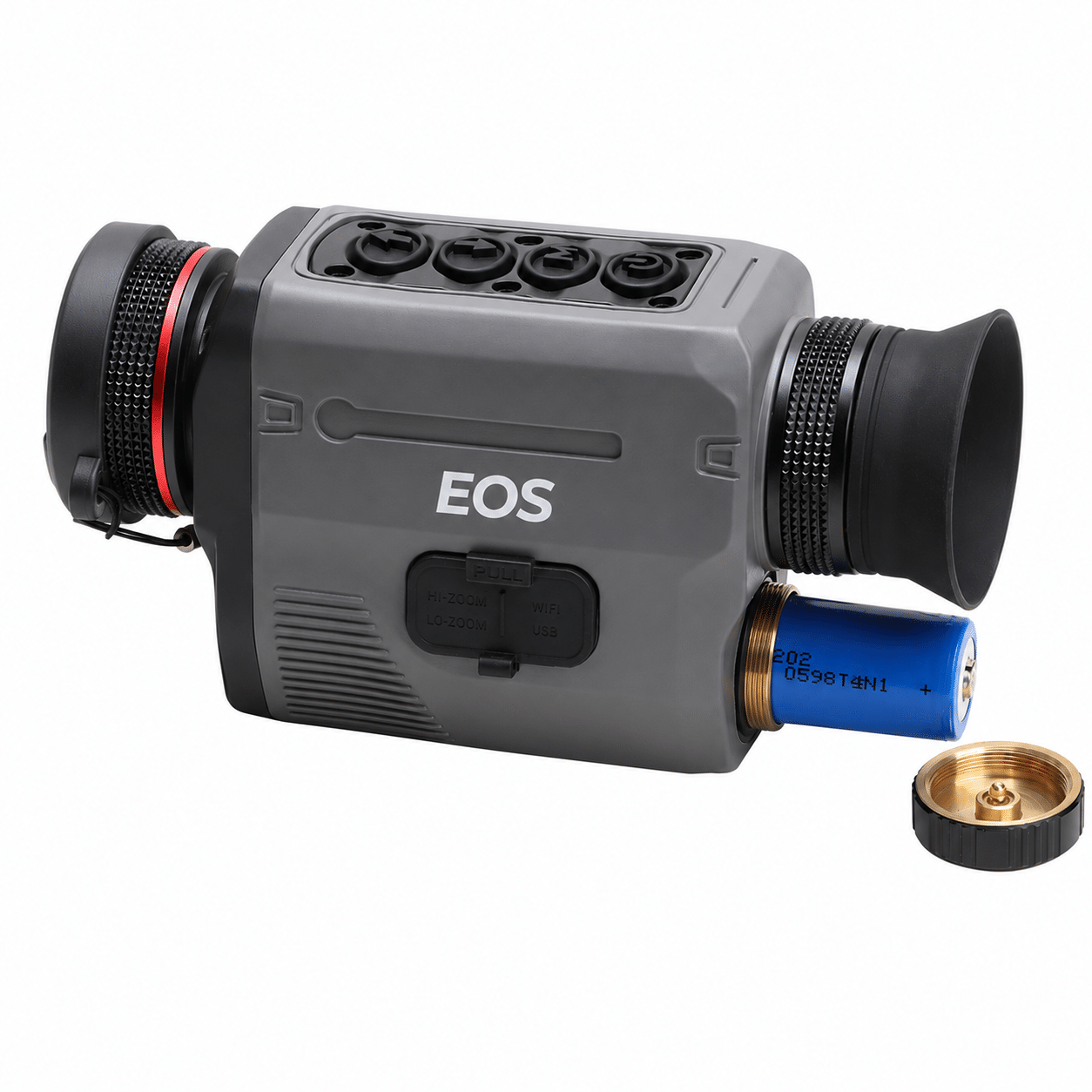

Battery type :18650 lithium battery

Additional information

384*288 sensor

The high-resolution 384×288 pixel sensor provides detailed and clear thermal images, enhancing detection and observation accuracy.

IPX7 waterproof

With an IPX7 waterproof rating, the monocular can withstand immersion in water up to 1 metre deep for 30 minutes, ensuring reliable performance in wet conditions.

2-10x magnification

The adjustable magnification range of 2x to 10x allows for versatile and accurate observation at various distances, making it suitable for a range of outdoor activities.

1800m detection range

A detection range of 1800 metres allows users to identify and track heat sources over long distances, ideal for hunting and surveillance.
