EOS_TGS225

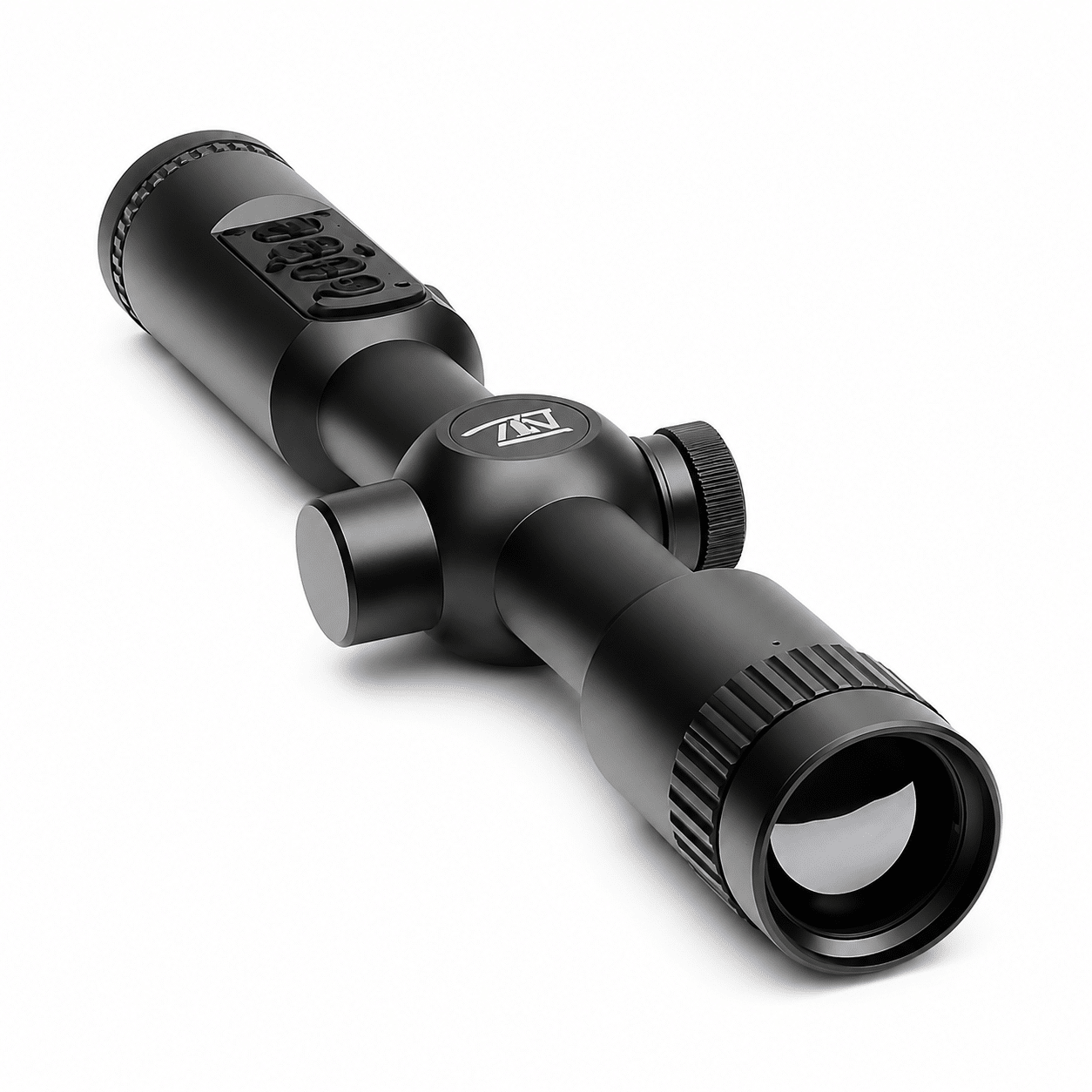

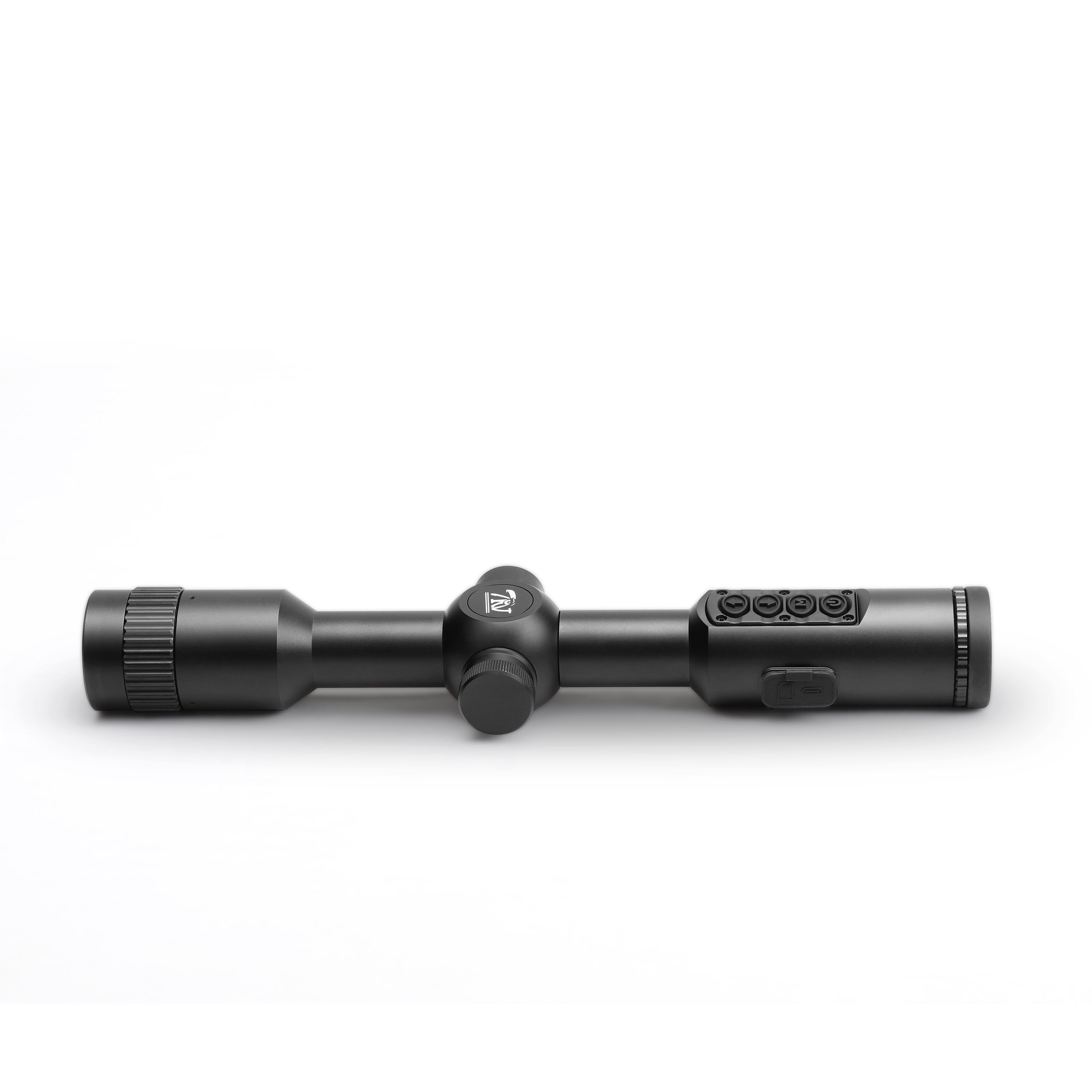

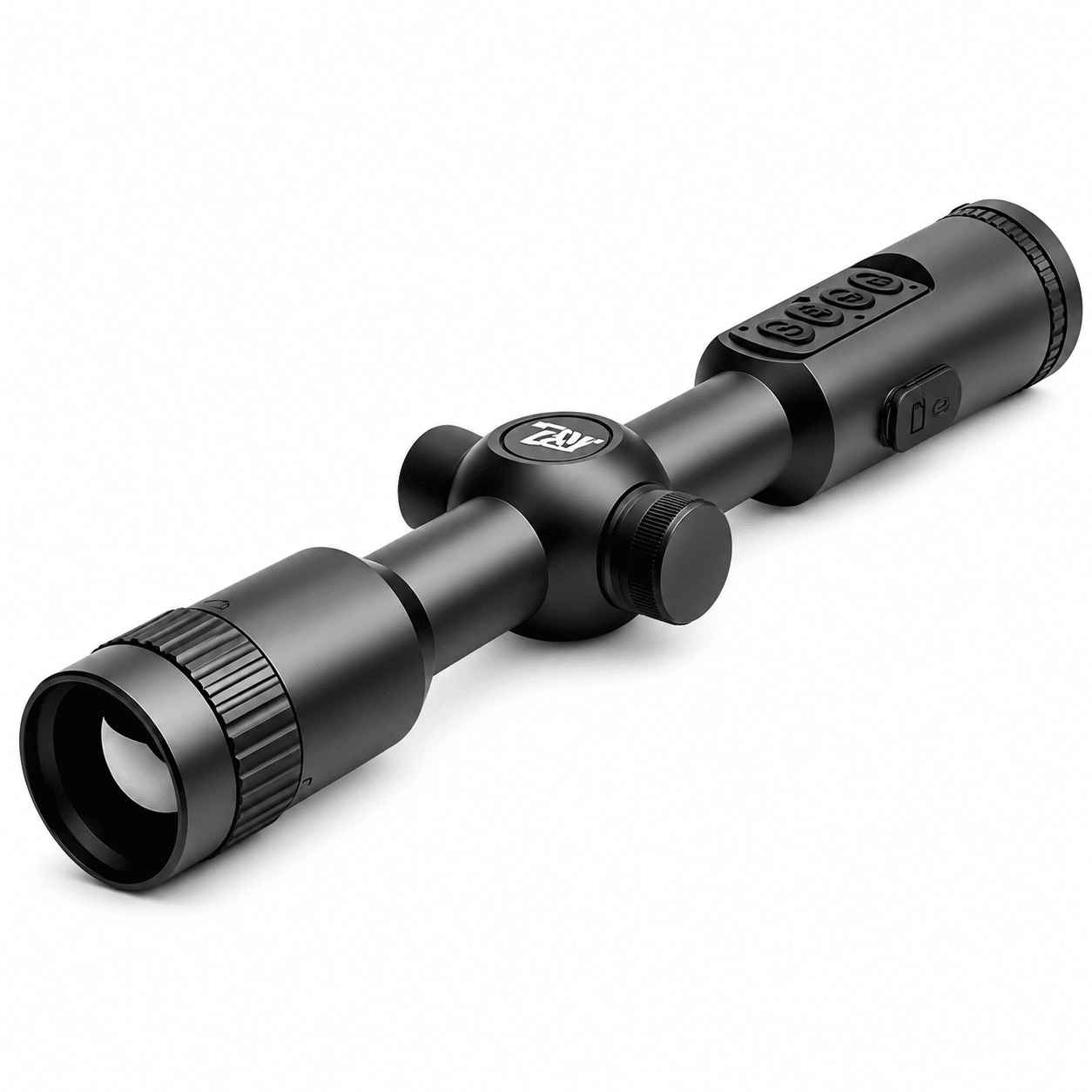

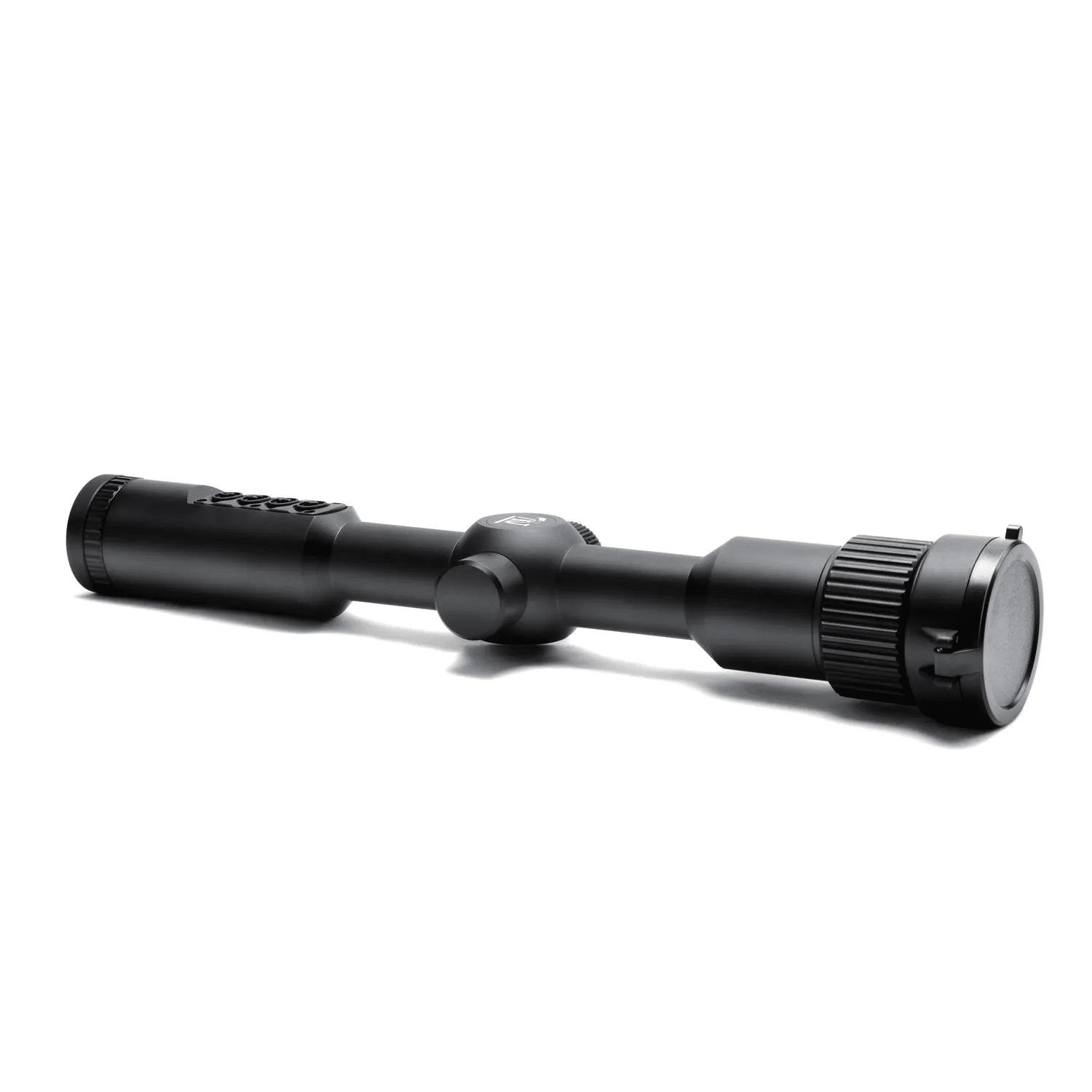

EOS-TGS225 thermal imaging scope

  1. Exceptional thermal imaging capabilities: The InfiRay thermal camera (EOS-TGS225) offers an impressive resolution of 384×288, with a pixel size of 12μm and a NETD of ≤25mk, ensuring superior image quality and high sensitivity in a variety of environmental conditions.
  2. Choice of multiple magnifications: The EOS-TGS225 offers users magnification options ranging from 4.5X to 7.5X, providing flexibility and adaptability across a variety of hunting scenarios.
  3. Advanced display and recording functions: The device features an HD AMOLED screen, ensuring clear and vibrant visuals, whilst its 1280×720 video and photo resolution enhances the sharpness and level of detail in images.
  4. Exceptional durability and IPX7 waterproof rating: Thanks to its robust construction and IPX7 waterproof rating, the EOS-TGS225 can withstand harsh weather conditions, making it a reliable tool for serious hunters.
  5. Detection range of 1600 metres, extending to 1800 metres for a large animal. the EOS-TGS225 allows users to quickly and accurately locate their prey, ensuring a successful hunt. Furthermore, the scope features a variety of thermal imaging modes, brightness levels and reticule options, offering greater customisation and flexibility.
Datasheet

EOS_TGS225

Technical details

Captor

VOx

Pixel : 384 × 288 à 12 μm
LEns : 25 mm
Magnification : 2,5 à 7,5 fois

Display

AMOLED (HD)

Frame rate : 50 Hz
Pixels : 1024 × 768

Resistance

Protection class : IPX7 (waterproof)
TyBAttery type : 18650 lithium battery

Additional information

High-resolution sensors:

Utilising a 1280×720 resolution OLED display. Combined with the optimised image processing algorithm, this produces an image of remarkable clarity.

Quick calibration

Fire once, move the reticule to the point of impact, confirm and exit to complete the calibration.

384×288 pixel resolution

The high-resolution sensor provides clear, detailed thermal images, improving target identification and accuracy in low-light conditions.

IPX7 waterproof

With an IPX7 waterproof rating, the sight can withstand immersion in water up to 1 metre for 30 minutes, ensuring reliable performance in wet or harsh environments.

First-focal-plane reticule

The first-focal-plane reticule ensures that the reticule size adapts to the magnification power, providing a consistent and accurate reticule at any zoom level.

Adjustable magnification

The adjustable magnification ranges from 2.5x to 7.5x allows for versatile use in various hunting and tactical scenarios, adapting to different distances and targets.
