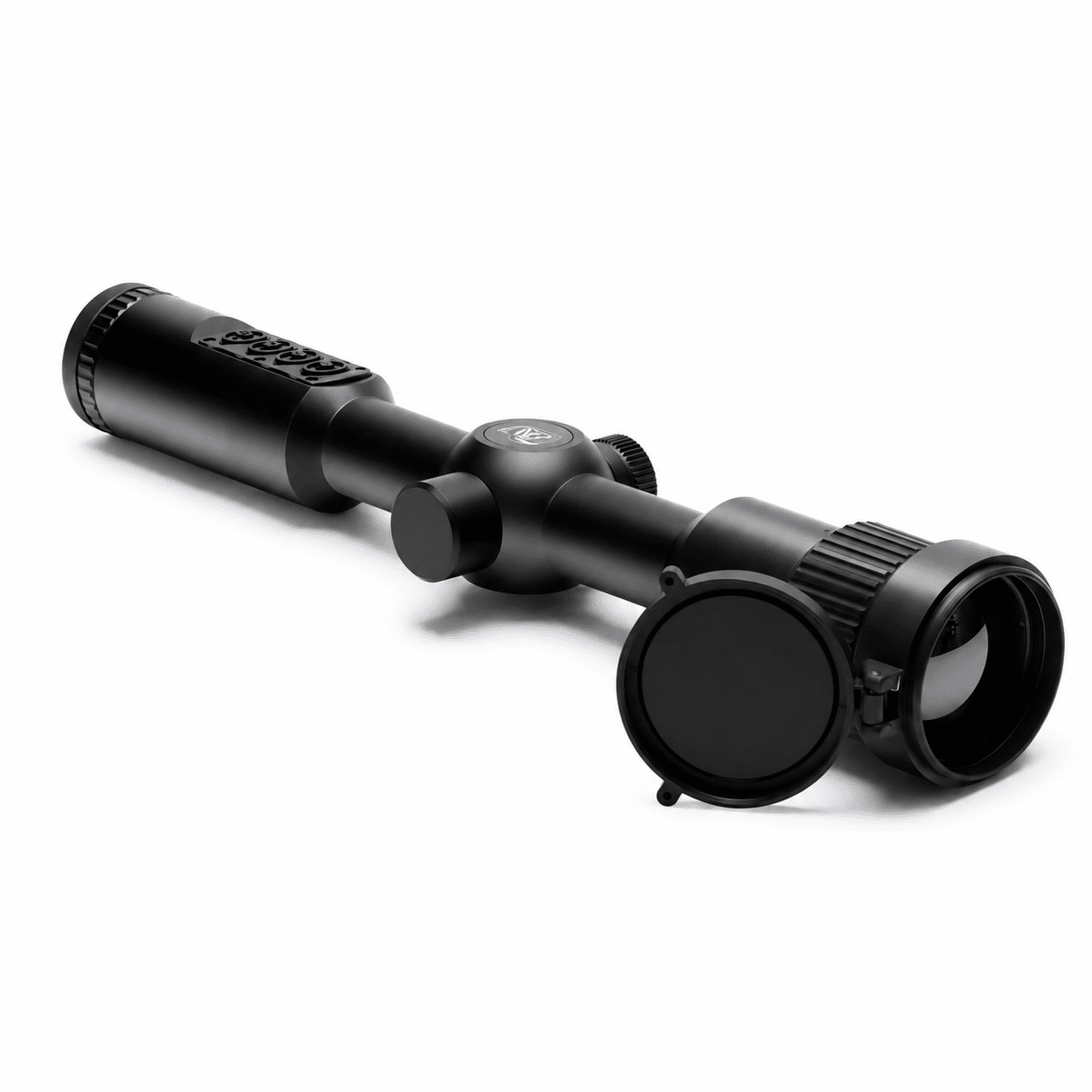

EOS-TGS335 thermal imaging scope

  1. Exceptional thermal imaging capabilities: The Infiray thermal camera (EOS-TGS335) offers an impressive resolution of 384×288, with a pixel size of 12 μm and a NETD of ≤25 mk, ensuring superior image quality and high sensitivity in a variety of environmental conditions.
  2. Choice of multiple magnifications: The EOS-TGS335 offers users magnification options ranging from 4.5X to 9X, providing flexibility and adaptability across a variety of hunting scenarios.
  3. Advanced display and recording features: The device features an HD AMOLED screen, ensuring clear and vibrant visuals, whilst its 1280×720 video and photo resolution enhances image sharpness and detail.
  4. Exceptional durability and IPX7 waterproof rating: Thanks to its robust construction and IPX7 waterproof rating, the EOS-TGS335 can withstand harsh weather conditions, making it a reliable tool for serious hunters.
  5. Incredibly long detection range of 1,600 m: With a detection range of up to 1,800 metres, the EOS-TGS335 allows users to quickly and accurately locate their prey, ensuring a successful hunt. Furthermore, the scope features a variety of thermal imaging modes, brightness levels and reticle options, offering greater customisation and flexibility.
Datasheet
Lunette de tir thermique EOS TGS335

EOS_TGS335

Technical details

Captor

VOx

Pixel : 384 × 288 at 12 μm
Lens: 35 mm
Magnificaion: 3 to 9x

Display

AMOLED (HD)

Frame rate : 50 Hz
Pixels : 1024 × 768

Resitance

Protection rating: IPX7 (waterproof)
Battery type: 18650 lithium battery

Additional information

Aluminium housing

The aluminium housing provides robust protection and durability, making it suitable for rigorous outdoor use.

Multi-coated lens

The multi-coated lens improves light transmission and reduces glare, thereby enhancing image clarity and overall performance.

IPX7 waterproof rating

With an IPX7 waterproof rating, the sight can withstand submersion in water to a depth of 1 metre, ensuring its reliability in wet conditions.

384×288 thermal resolution

The 384×288 thermal resolution delivers detailed and clear thermal images, improving target detection and identification in low-visibility conditions. Combined with the optimised image algorithm, it produces a remarkably clear image.

QUICK CALIBRATION

Quick calibration: fire once, move the reticle to the point of impact, confirm and exit to complete the calibration.

3–9x magnification

The 3–9x magnification range offers versatile zoom capabilities, allowing users to adjust the view for different distances and scenarios.

HD AMOLED display

The HD AMOLED display delivers a high-contrast, vivid image, ensuring that details remain clearly visible even in low-light conditions.
