EOS_TGS450

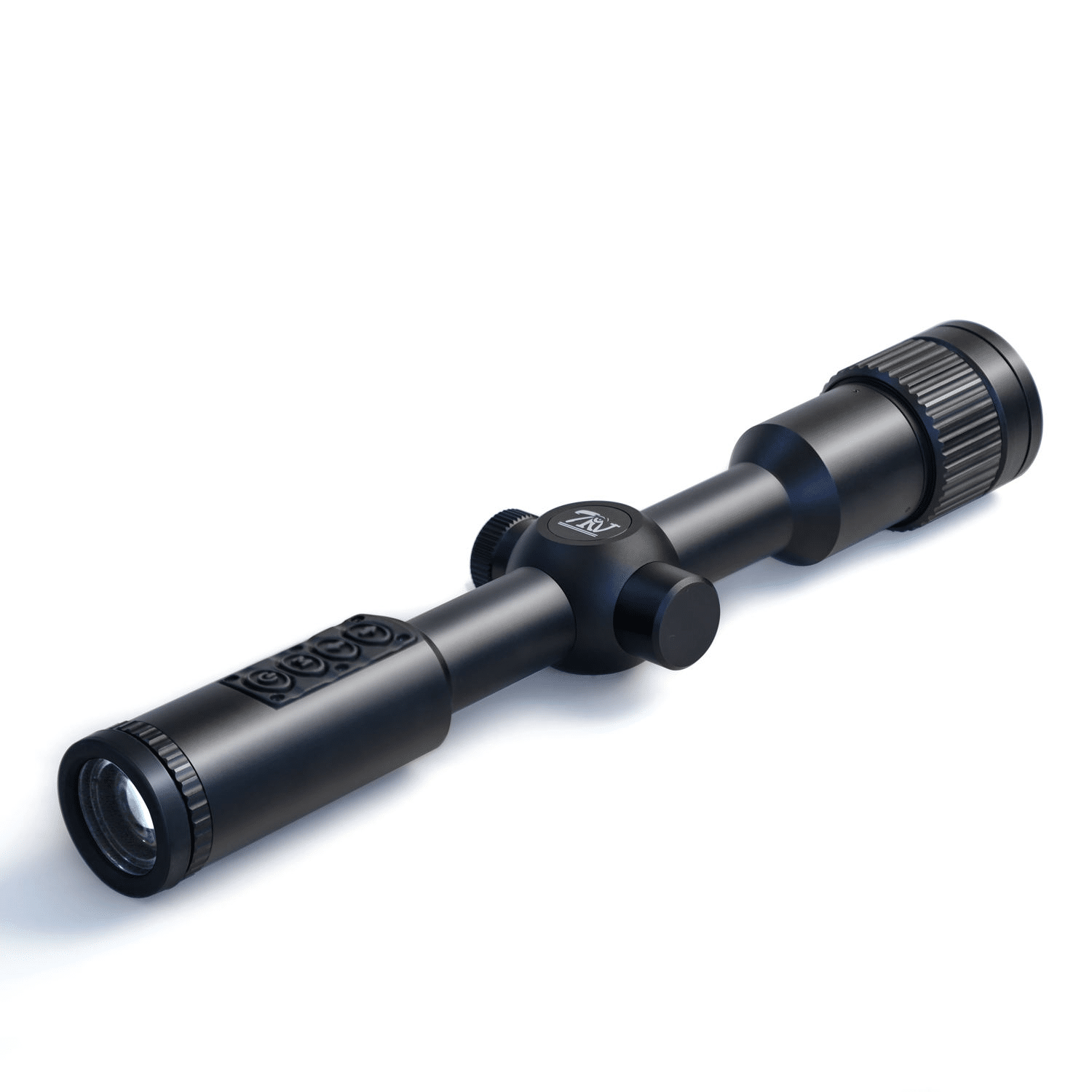

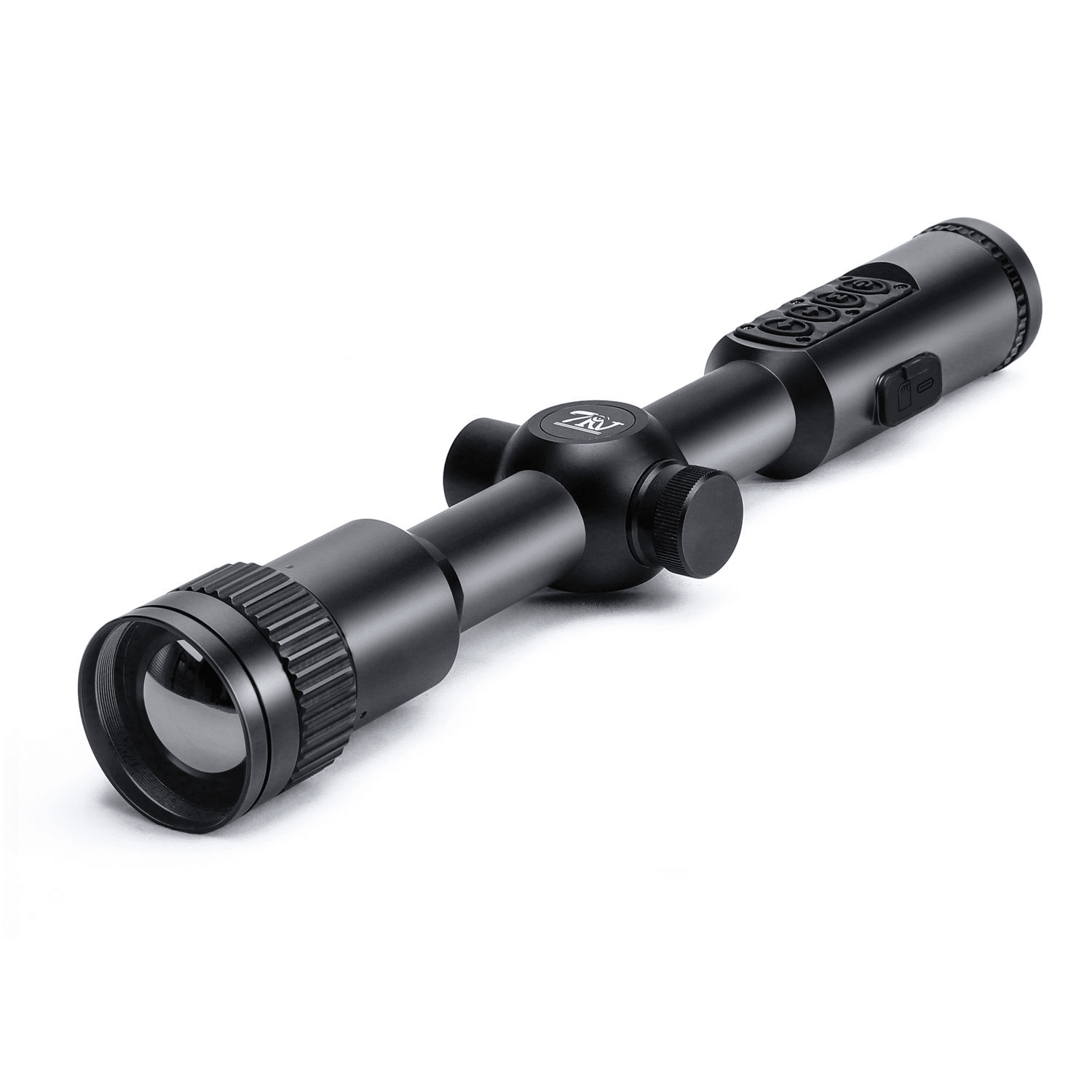

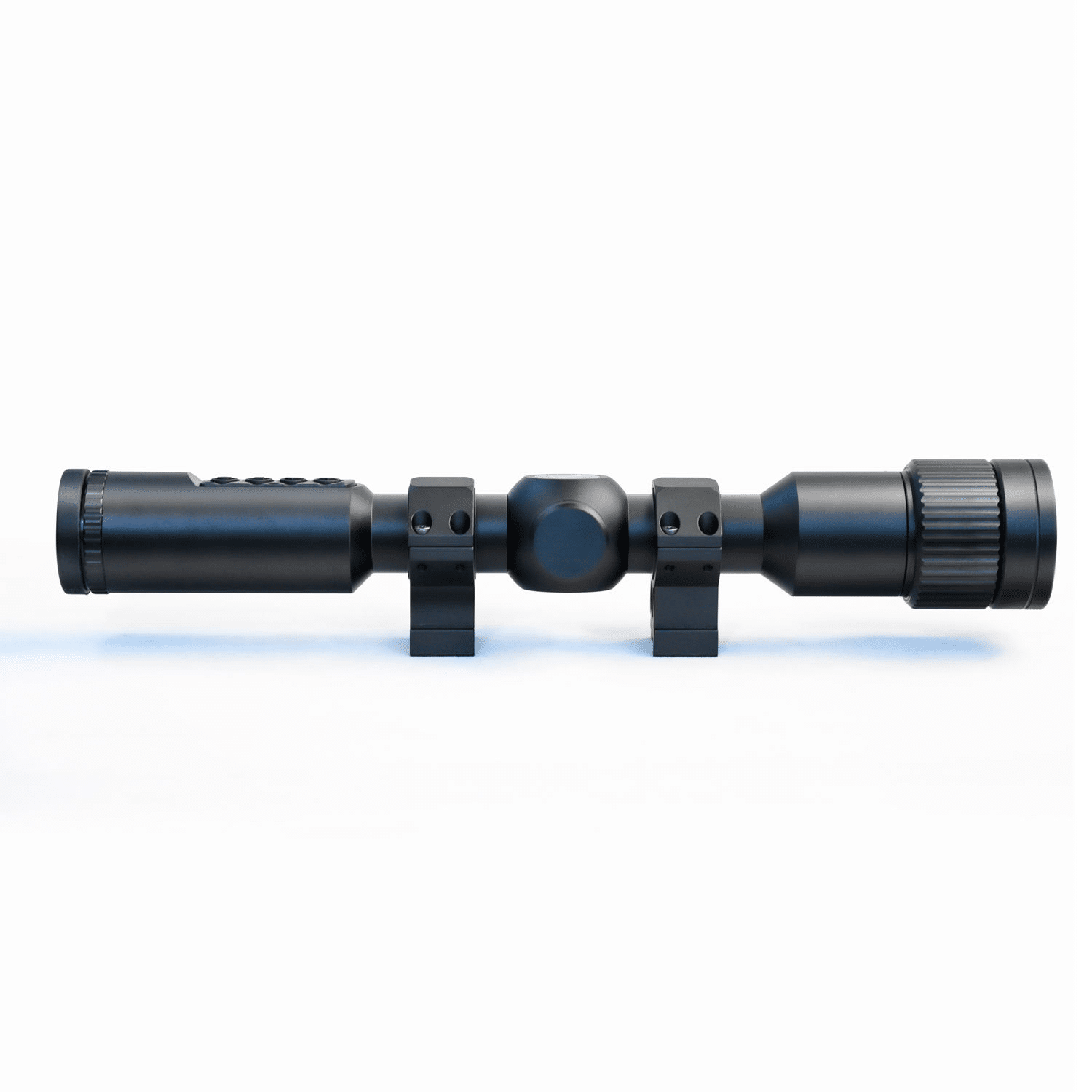

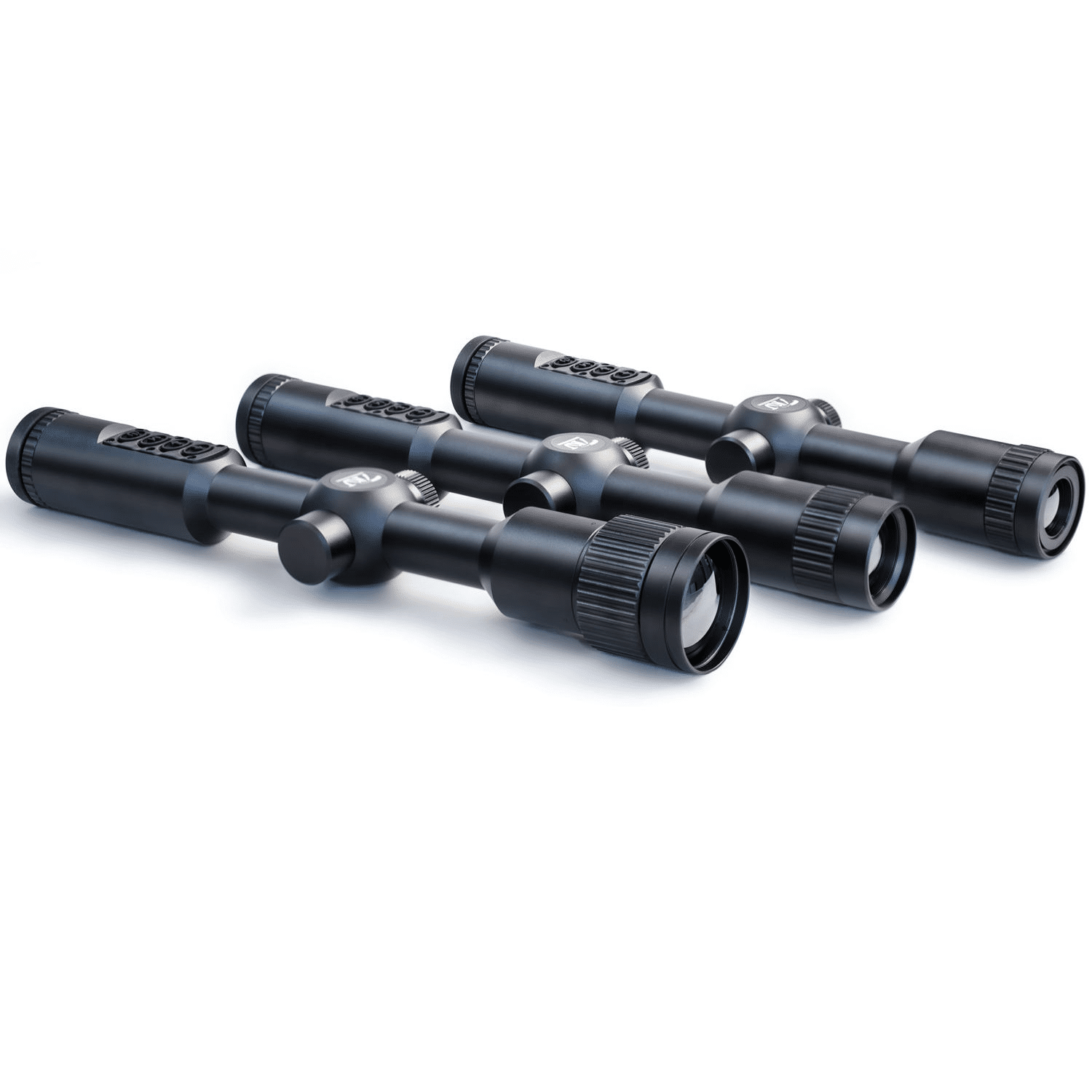

EOS-TGS450 thermal imaging monocular

Exceptional thermal imaging capabilities: The Infiray thermal camera (EOS-TGS450) offers an impressive resolution of 384 × 288, with a pixel size of 12 μm and a NETD of ≤25 mK, ensuring superior image quality and high sensitivity in a variety of environmental conditions.
Choice of multiple magnifications: The EOS-TGS450 offers users magnification options ranging from 4.5X to 13.5X, providing flexibility and adaptability in various hunting scenarios.
Advanced display and recording features: The device features an HD AMOLED screen, ensuring clear and vibrant visuals, whilst its 1280×720 video and photo resolution enhances image sharpness and detail.
Exceptional durability and IPX7 waterproof rating: Thanks to its rugged construction and IPX7 waterproof rating, the EOS-TGS450 can withstand harsh weather conditions, making it a reliable tool for serious hunters
Incredibly long detection range of 1800 m: With a detection range of up to 2000 metres, the EOS-TGS450 allows users to quickly and accurately locate their prey, ensuring a successful hunt. Furthermore, the scope features a variety of thermal imaging modes, brightness levels and reticule options, offering greater customisation and flexibility.

Datasheet

EOS_TGS450

Technical details

Detection

VOx

Detection range : 2 000m
Magnification : 4,5x to 13,5x

Display

AMOLED (HD)

Frame rate : 50 Hz
Resolution (video & photo) : 1280 × 720 px

Resistance

Battery: lithium 18650
Protection rating : IPX7 (waterproof)

Additional information

Aluminium housing

The aluminium housing provides robust protection and durability, making it suitable for rigorous outdoor use.

Multi-coated lens

The multi-coated lens improves light transmission and reduces glare, thereby enhancing image clarity and overall performance.

IPX7 waterproof rating

With an IPX7 waterproof rating, the sight can withstand immersion in water up to 1 metre deep, ensuring reliability in wet conditions

384×288 thermal resolution

The 384×288 thermal resolution delivers detailed and clear thermal images, improving target detection and identification in low-visibility conditions.
